The XOS Clora® R series benchtop analyzers are easy to use, allow you to carry out rapid tests and allow you to work in compliance with method directives in a flexible, accurate and precise way.
Based on MWDXRF technology, these analyzers provide direct measurements and require no gas consumption or sample handling.

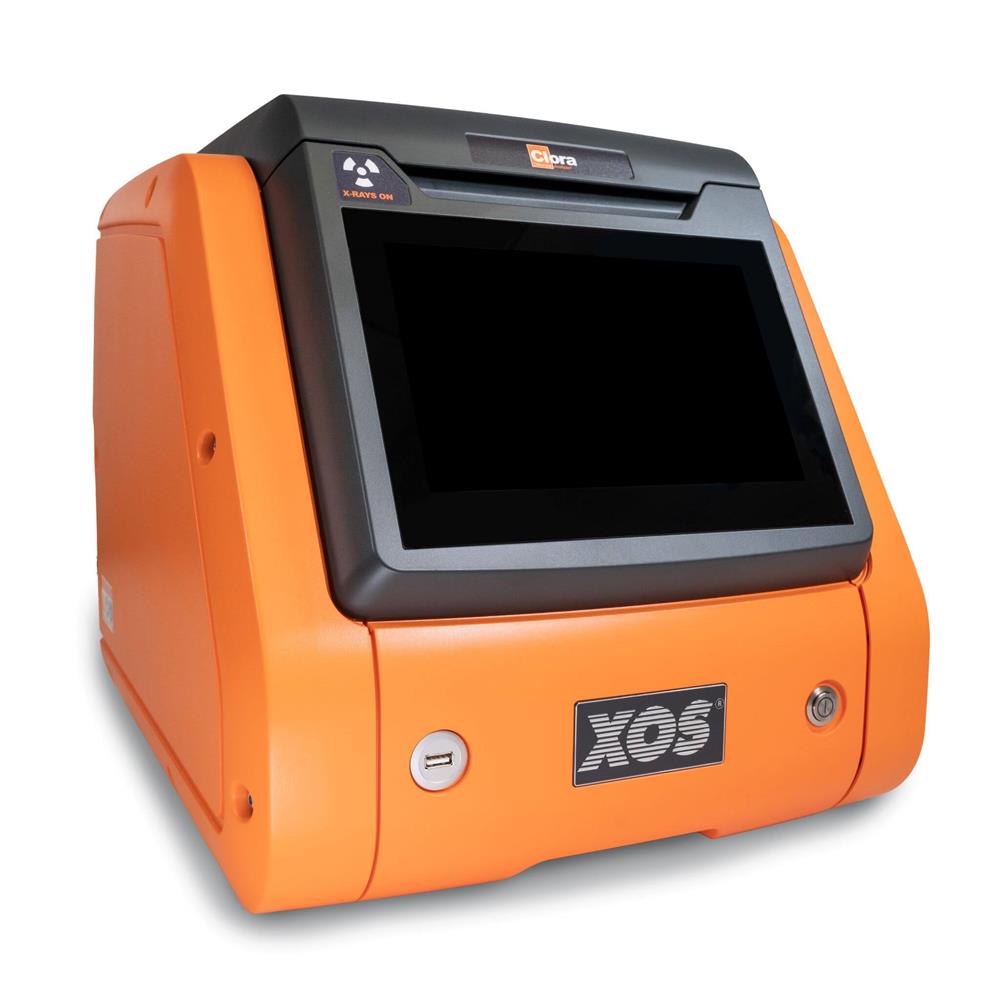

Clora® R series
Clora® measures total chlorine in hydrocarbons such as aromatics, distillates, heavy fuels, crude oils, and water. This state-of-the-art technology complies with ASTM D7536 and D4929C and delivers unparalleled accuracy and precision for petroleum and petrochemical applications where simple, quick, and reliable analysis is critical.
Application: total chlorine analysis in petroleum products, biofuels, aromatics and other chemicals, and water.
Features:
- LOD for hydrocarbons: 0.13 mg/kg (ppm) at 300s, 0.09 mg/kg (ppm) at 600s
- LOD for aqueous samples 0.3 mg/kg (ppm) at 300s, 0.21 mg/kg (ppm) at 600s
- Dynamic range: 0.13 mg/kg (ppm) to 4 wt%
- Manual sulfur correction to correct for high sulfur samples
- Low and high range calibrations available:
- Low range: 0.13 mg/kg (ppm) – 3000 mg/kg (ppm)
- High range: 0.3 wt% – 4 wt%.

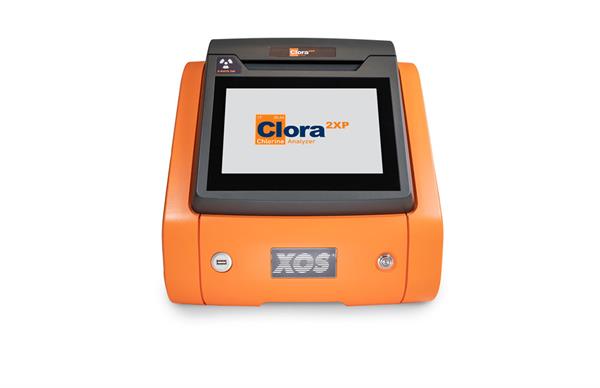

Clora® 2XP R series
Easier to use than ever, Clora® 2XP analyzes total chlorine in liquid hydrocarbons such as aromatics, distillates, heavy fuels, and crude oils, as well as aqueous solutions, while automatically correcting for sulfur interference.
The enhanced precision and performance technology makes it the ideal choice for testing related to catalyst poisoning in reformers or for sites with fluid catalytic crackers and hydrocrackers monitoring very low chlorine levels. This state-of-the-art technology complies with ASTM D7536 and D4929C. Application: total chlorine analysis from aqueous solutions and aromatic products to heavy fuels and crudes.
Features:
LOD: 0.1 mg/kg (ppm) at 300s, 0.07 ppm at 600s in
hydrocarbons**
Dynamic range: 0.1 mg/kg (ppm) – 2 wt%
Automatic sulfur correction saves time and improves accuracy and precision on high sulfur samples
Low and high range available:
– Low range: 0.1 mg/kg (ppm) – 3000 mg/kg (ppm)
– High range: 0.3 wt% – 2 wt%

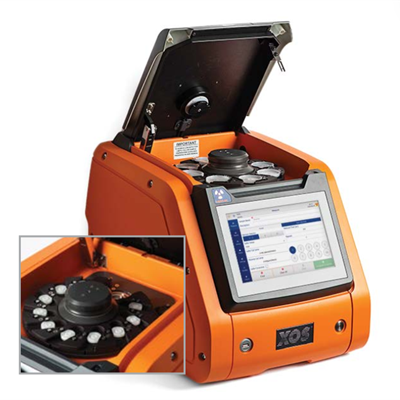

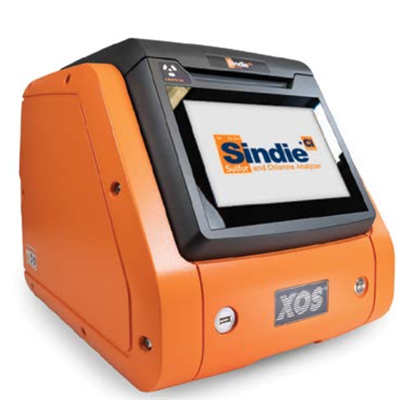

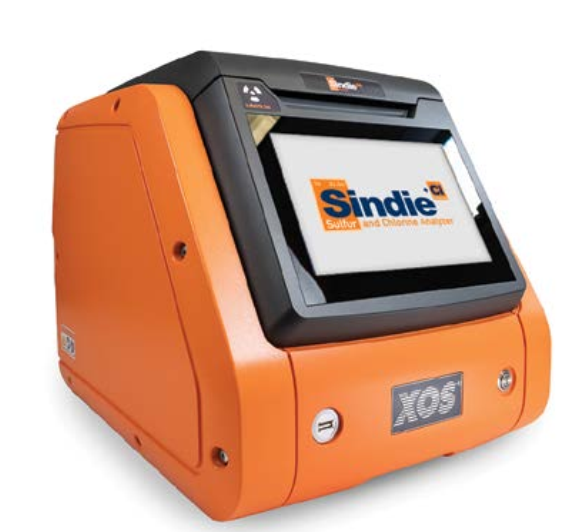

Sindie ® +Cl is a two-in-one instrument enabling trace analysis of both sulfur and chlorine with one analyzer.
It is the ideal solution to certify sulfur levels in finished products, assess chlorine for corrosion mitigation, and optimize process parameters. *
Compliance with Test Method ASTM D2622, D7039, D7536, D4929 ISO 20884, and SH/T 084.
Features:
- Sulfur: LOD: 0.4 mg/kg (ppm) at 300s, 0.28 mg/kg (ppm) at 600s*
- Dynamic Range: 0.4 mg/kg (ppm) to 5 wt%
- Chlorine: LOD: 0.3 mg/kg (ppm) at 300s, 0.21 mg/kg (ppm) at 600s*
- Dynamic Range: 0.3 mg/kg (ppm) to 3000 mg/kg (ppm)
- Automatic sulfur correction saves time and improves accuracy and precision on high sulfur samples.
All Clora R series analyzers are:
-
Easy to use: Intuitive 10-inch touch screen - Just plug in and measure
- Measurement time: 10-999 s
Low maintenance: no gasses, heating elements, columns, or quartz tubing
- Traditional XRF sample cups or XOS Accucells
- Small footprint
- LIMS integration for data management and transfer
-
Preset favorites capability to save data entry time and minimize mistakes on common samples
- Bar code reader autofills sample name to reduce data entry time
- Storage capacity for more than 50,000 measurment results
- Supports up to 30 calibration curves

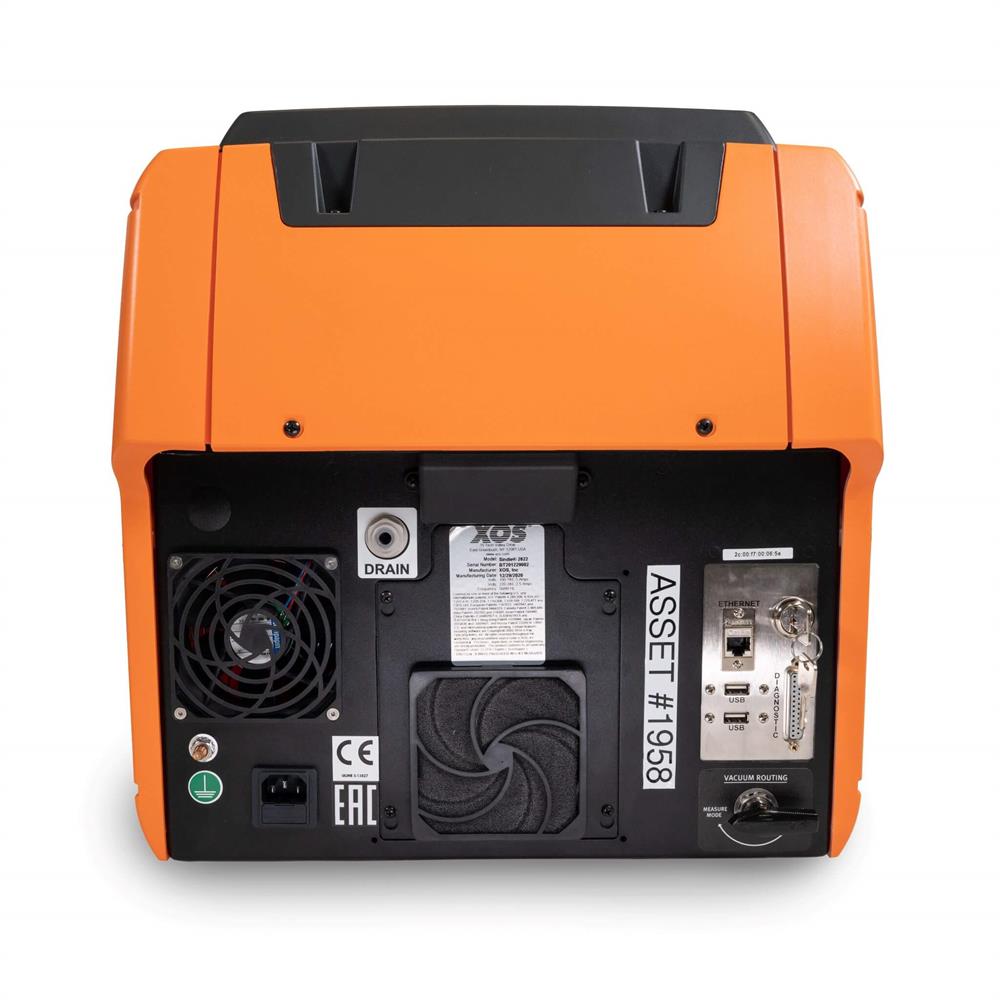

- USB connectivity in front and back for connecting toprinter, keyboard, mouse, memory stick. Supports USB as well as network printers
Large, easy-to-remove side panels for easy serviceability
Advanced error reporting and diagnostics.
