SCENTROID SF450 Flux Chamber Sampler

The Perfect Sampler for Both Land and Water
The Scentroid Flux chamber sampler (a.k.a. Emission Isolation Flux Hood) is used to determine levels of emissions from solid or liquid surfaces

Description

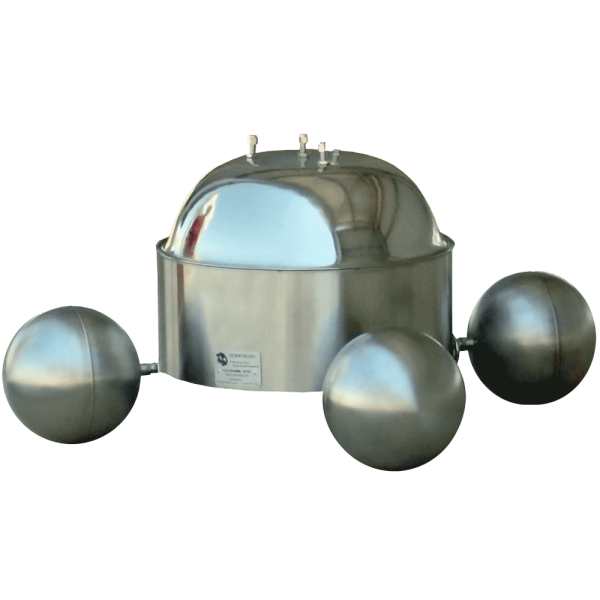

The Scentroid Flux chamber sampler (AKA Emission Isolation Flux Hood) is used to determine levels of emissions from solid or liquid surfaces. The SF450 has a 100% solid stainless steel construction to ensure zero cross contamination. Flotation is achieved using 4 stainless steel floats eliminating the need for rubber tubes or foam making the unit easy to clean and maintain.

Flux Chamber Sampler Applications:

  • emission measurements from liquid surfaces such as settling tanks and off-spec ponds
  • emission measurements from solid surfaces such as compost piles and sludge
  • emission measurement from liquid active sources such as aerated lagoons
  • ideal for sampling of corrosive sources e.g. with high benzene or H2S content
  • ideal for field operations that require quick decontamination

Flux Chamber Sampler Basics of Operation

  1. connect the flux chamber sampler sweep airline to either nitrogen or zero air cylinder
  2. move the flux chamber sampler to sampling location
  3. allow time for the 2 air exchanges inside the chamber
  4. extract sample using a vacuum chamber

For aerated liquid sources, an air sweep may not be required
