GasMix™ Series Dynamic Gas Mixer 2 to 6 Channels
The GasMix™ and LiqMix™ lines are AlyTech's innovative automated systems designed to mix or dilute vaporized gases and liquids to create customized gas mixtures on-site, suited to specific laboratory needs and applications such as calibration gas standards or synthetic atmospheres.
These versatile solutions are available in compact, benchtop, rack-mounted or portable formats.

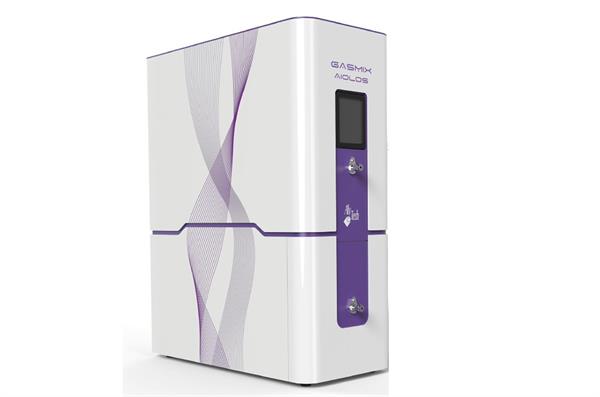

The Aiolos III Dynamic Gas Mixer is the latest generation of the GasMix™ Series, enabling multi-point calibrations, linearity checks and LOQ/LOD validations.
By mixing and/or diluting two to four gases, the system generates calibration gases on-site at the desired concentration, even at very low levels.
The accuracy and reproducibility of the prepared gas standards make it a reliable instrument, appreciated by users who are attentive to metrological performance.
GasMix™ Aiolos III Benefits:
-
Dedicated, intuitive and easy-to-use software
- Time savings: programmed injection sequences save significant time in routine quality procedures
- Full automation: synchronizing dilutions, injections and wash times with an external analyzer
-
Improved accuracy: multi-point MFC calibration curves for each gas used
- Rigorous metrology: full traceability, documentation and certification of concentration accuracy
- Compliance with ISO 6145-7.
Key Features:
-
Number of gas channels: 2 to 6
Inlet gas pressure: 3 bar(g) nominal, max 8 bar(g)
- Outlet pressure: atmospheric up to 7 bar(g)
- Connections: Swagelok 1/8′, 1/4′, others on request
- Gas compatibility: pure gases, concentrated gas mixtures, most aggressive gases
- AIOLOS III performance characteristics

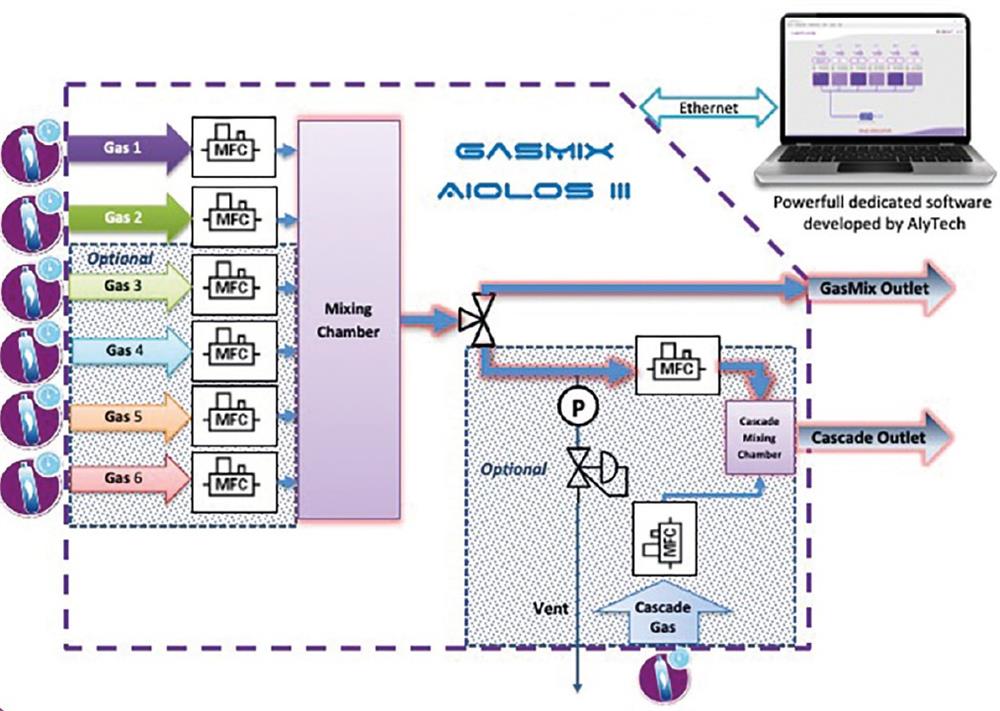

- Mixing: simultaneous mixing of up to 6 channels
Initial concentration dilution ratio: up to 10^4 or 10^8 in cascade mode
- Flow rate accuracy: ±1% of setpoint (*)
- Flow rate repeatability: <0.1% of setpoint (*)
- Response time to setpoint: <5 sec.
(*) Valid when all mass flow controllers operate between 10% and 100% of brought to full scale.
