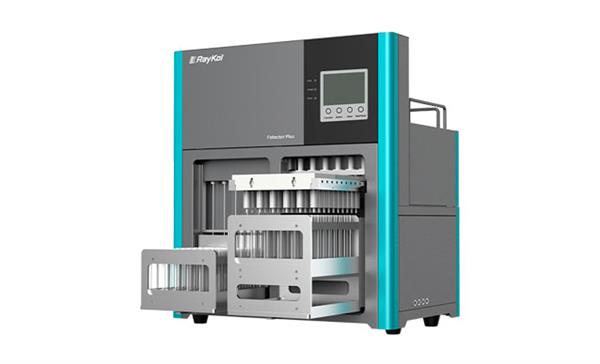

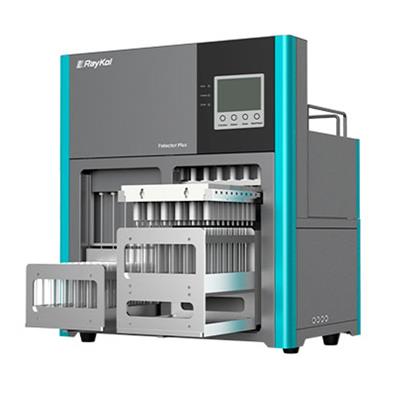

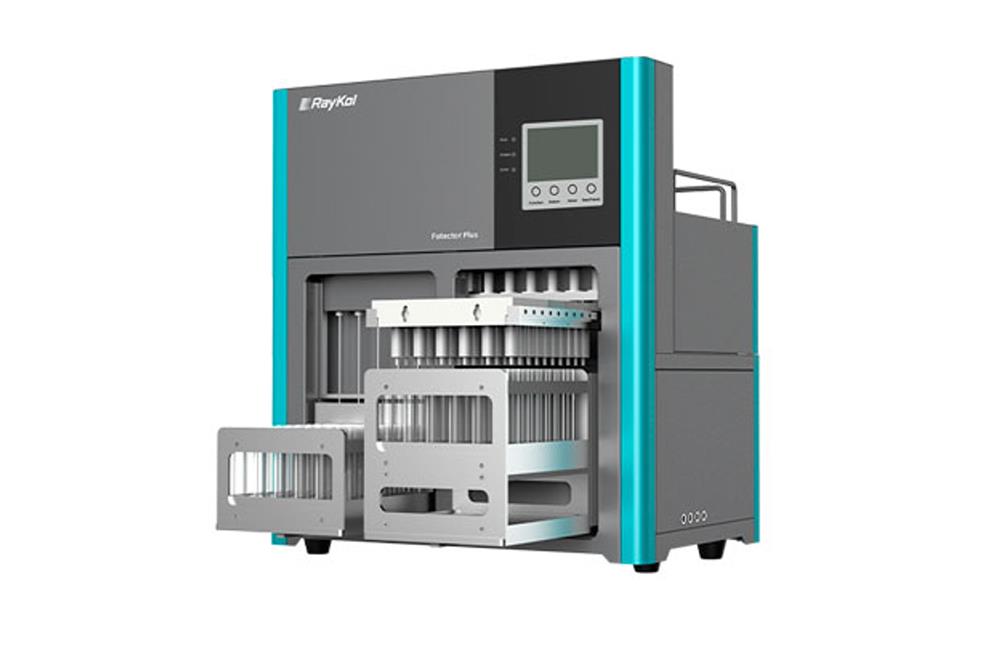

RayKol's Fotector Plus automated solid-phase SPE extraction/purification system is designed to eliminate manual operations and meet high-throughput sample preparation requirements.
The instrument's compact design allows it to be housed within a fume hood, thus minimizing chemical exposure for laboratory technicians.
The Fotector automated solid phase extraction system can be widely used in any sample pretreatment requiring solid phase extraction.
Applications include: pesticide and and agrochemical residues in food, harmful organic compounds in the environment, and toxic substances in blood and urine.
Key features:
-
Fully automated solid-phase extraction with minimal operator intervention
- Precise flow rate control
- Multiple extraction channels and consistent batch processing
- Efficient operation, thanks to synchronous rack positioning and rapid solvent changeover
- Flexible operation with different modules for different applications
- Intuitive graphical software interface
- Real-time remote monitoring.
Technical specifications:
-
Extraction Channels: 6 parallel channels
- Sample Capacity: 60, 36
- SPE Cartridge Sizes: 1 mL, 3 mL, 6 mL, 12 mL, 20 mL
- Sample Vials: 15 mL, 20 mL, 60 mL, 80 mL
- Collection Vials: 15 mL, 20 mL, 60 mL, 80 mL
- Solvent Capacity: 8
- Flow Rate: 0.1 to 100 mL/min
- Gas Supply and Connection: Nitrogen - Maximum Inlet Pressure: 100 psi/6.9 bar - Maximum Outlet Pressure: 0 to 20 psi/1.4 bar
- Fuel Hood/Ventilation: Required
- Control Software: Windows PC; Wi-Fi connection
- Dimensions: 62 cm x 38 cm x 63 cm - weight: 68 kg
- Operating temperature: 10-40°C
- Operating humidity: 20-80%.
