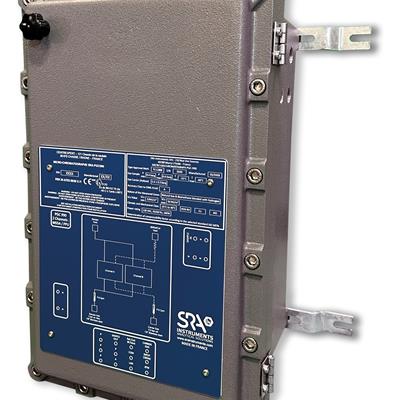

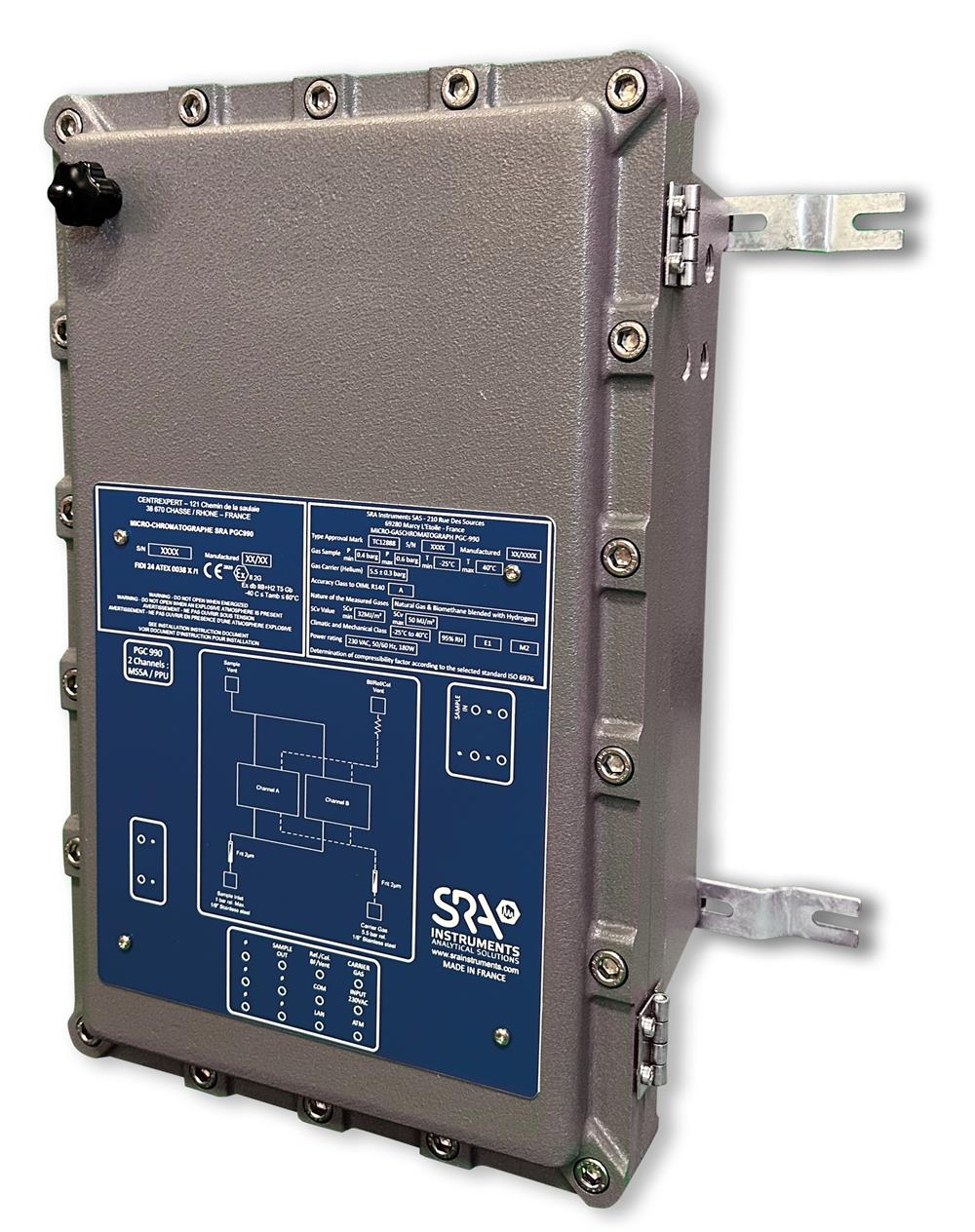

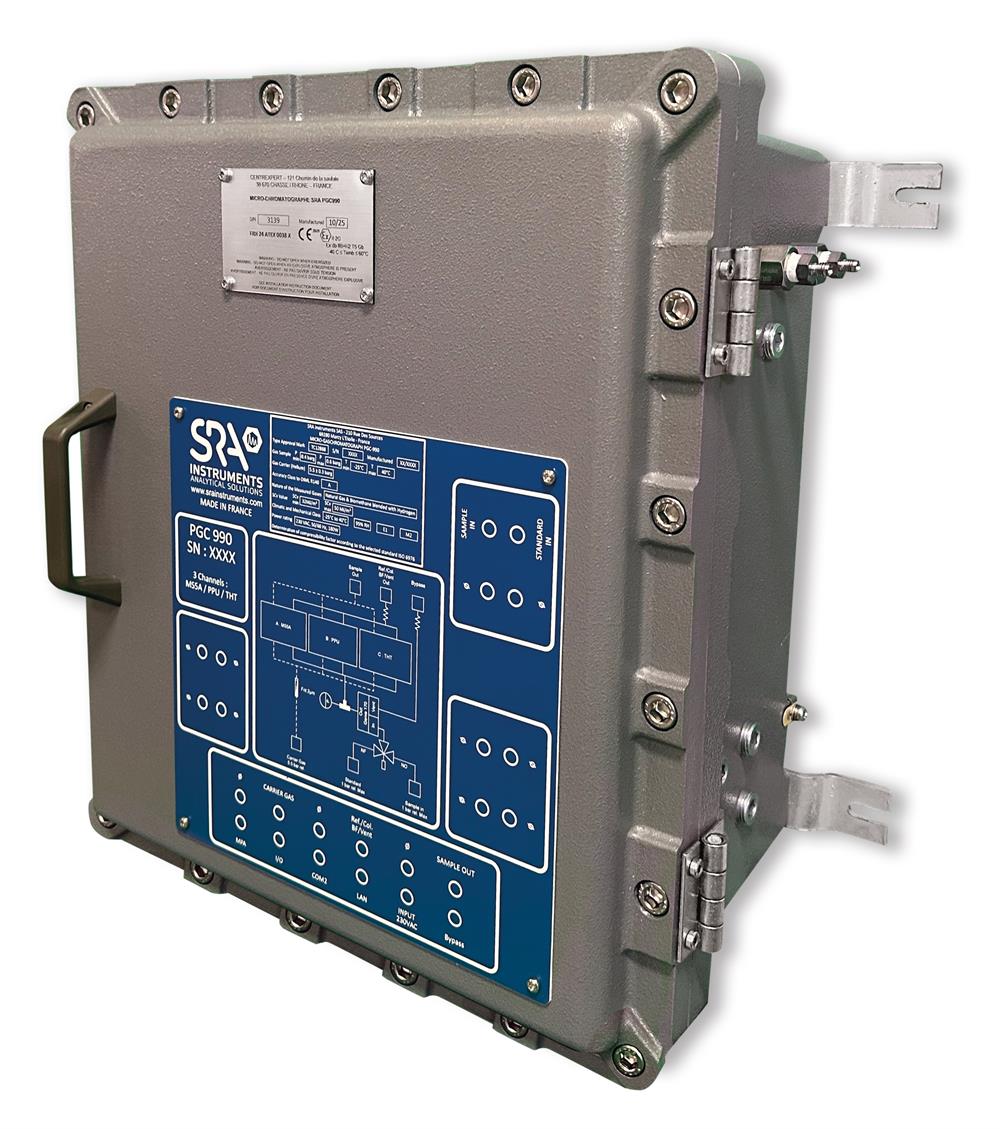

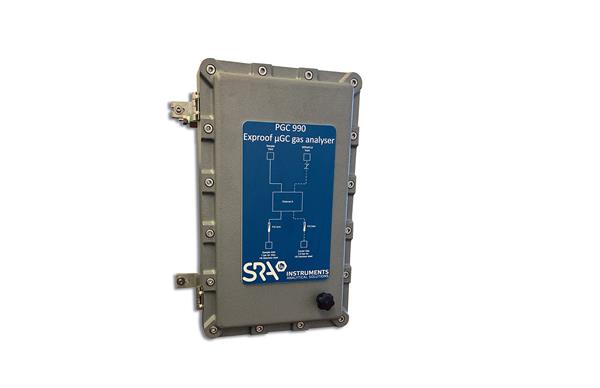

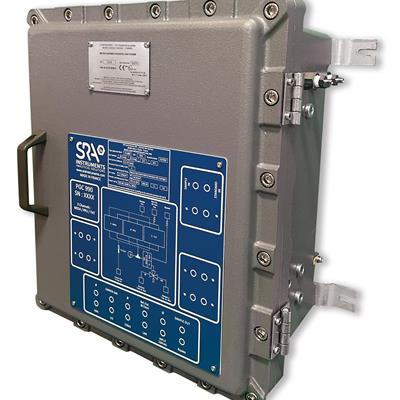

The SRA Instruments μPGC 990 is a process microgas chromatograph, based on Agilent Micro GC technologies, suitable for measuring various fuel mixtures and their impurities.
The system is ATEX II 2G Ex db IIB+H2 T5 Gb certified (operating from -40 °C to +60 °C) and compliant with European directives 2014/34/EU.
The analyzer allows rapid, accurate and online analyzes of Natural Gas, Biogas, Biomethane and Hydrogen directly near the sampling point.
The μPGC 990 is controlled by the SRA Soprane software, installed on a Personal Computer (external in a secure area or on-board computer) or via Agilent's PROstation Web Browser software: no Windows PC is required; all you need is a tablet, smartphone, or any networked device to access all functions. Real-time results are transmitted via Modbus, easily integrating with existing control systems. All the electronics and processing unit are housed on the motherboard inside the instrument box.
The analyzer can be interfaced with industrial acquisition systems and has various automation possibilities to meet the specific needs of each plant.
Regulatory Context:
- UNI ISO 11885:2022 – Functional characteristics of gas chromatographs with TCD detector installed on gas transport and distribution networks
- UNI/TS 11537:2024 – Injection of biomethane into natural gas transport and distribution networks
- UNI 7133-2:2023 – Odorization of gas for domestic and similar use
- UNI EN ISO 2614:2023 – Analysis of natural gas – Biomethane – Determination of terpene content through μgas chromatography.
Key features:
- High-speed gas analysis (fast, simultaneous separations)
Parallel isothermal channels for short cycle times that increase productivity
- Up to two simultaneous carrier gases (helium, argon, hydrogen, nitrogen)
- Up to four analytical channels (injector, detector, column)
- Low sample gas requirements
- Modular design and award-winning miniaturized MEMS components
- Robust and reliable for process applications
- Proprietary chromatographic and process software
- Flexibility in automation and data transmission
- Easy maintenance thanks to the modularity of the analytical channels
- Suitable for integration into racks and existing shelters.
Turnkey configurations:
- ATEX Micro-PGC ODO analyzer: Compliant with European
directives 2014/34/EU, 2014/30/EU, 2014/35/EU,
as well as meeting the UNI 7133-2:2023 requirements. Allows continuous monitoring of THT and TBM to ensure safety and compliance in natural gas and biomethane networks
- ATEX Micro-PGC NG+H2 analyzer: Compliant with the ISO 6976:2016, OIML R140 & MID 2014/32/EU standard. Allows continuous monitoring of the quality and calorific value of natural gas and its hydrogen blends
- ATEX Micro-PGC Bio-CH4 analyzer: Compliant with ISO 6976:2016, EN ISO 2614:2023, OIML R140 & MID 2014/32/EU. Allows continuous monitoring of biomethane quality and fiscal calculation of calorific value.
